How Does Postgres Store Data on Disk?

If you insert a row into a postgres table, could you go and find it on disk? The actual file, the actual bytes? That’s what we’re going to do in this post. We’ll insert one row, find the file it lives in, and then decode it byte by byte using the structs from the postgres source code.

Prefer video? Here’s the same walkthrough:

How postgres organizes storage

Before we go inserting and searching for data, let’s first build a picture of how postgres organizes data. That way, when we trace the bytes for our data, we’ll know what we’re looking at.

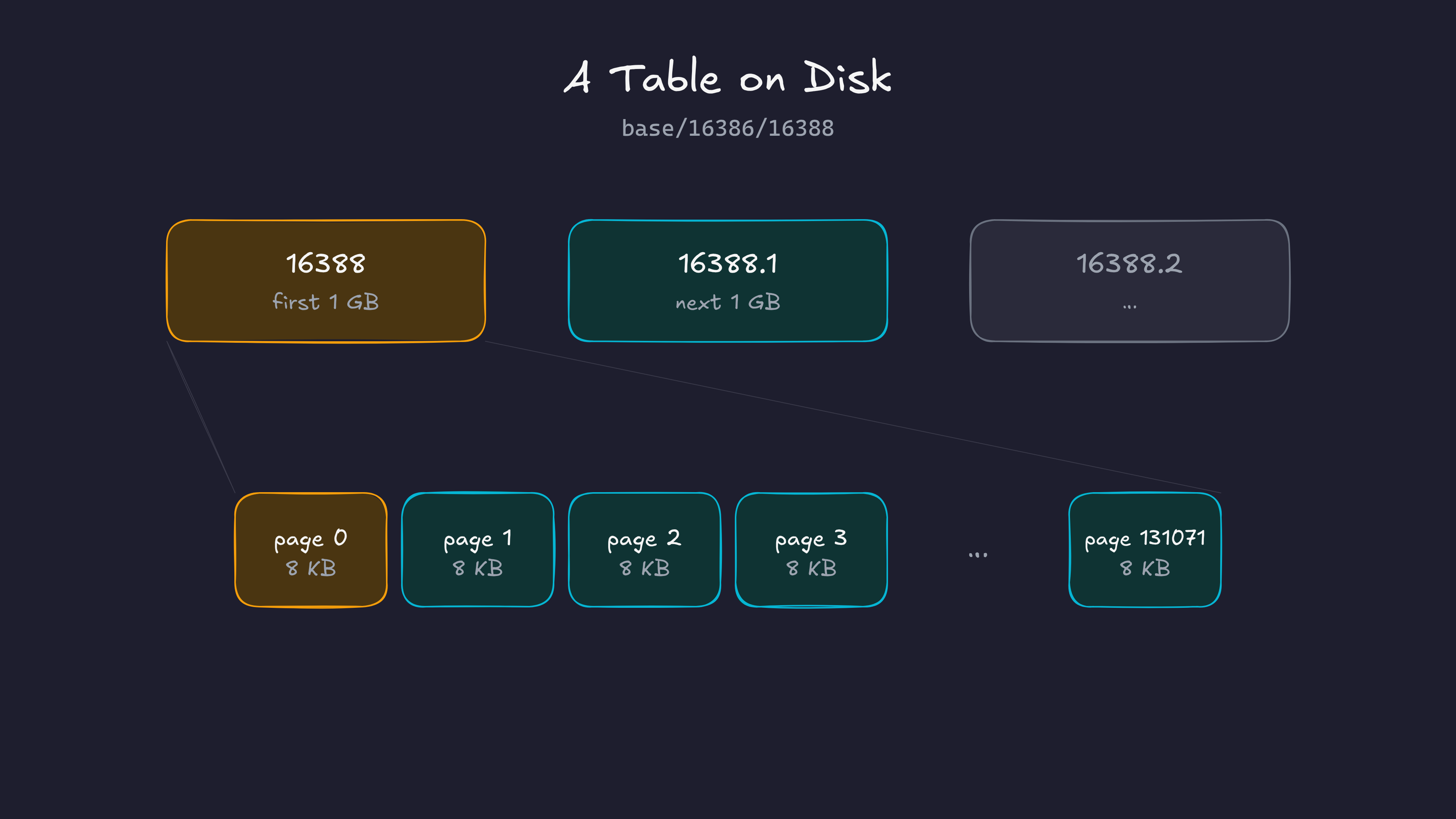

In Postgres, every table is stored in one or more files. We call these files segment files. A segment file can grow up to 1GB. If a table grows beyond 1GB, postgres creates another segment file for the next 1GB, then another one, and so on. For a table whose file is named 16388, the segments would be named 16388, 16388.1, 16388.2, and so on. ( The 1GB limit can be changed at the time of setup )

Each segment file is made of pages ( also called blocks ). A page is 8KB by default. This too can only be changed at compile time. The page is the smallest unit of IO in postgres: when postgres reads from or writes to a table file, it reads or writes a whole 8KB page. Any change to a row, however small, happens by changing the page that contains it.

segments-and-pages

Now let’s zoom into a page. Every page has the same layout:

• A page header of 24 bytes at the start.
• An array of line pointers right after the header. Each line pointer is 4 bytes and points to one row in the page. This array grows from the top of the page downwards.
• The tuples ( rows ) themselves, which are stored from the bottom of the page upwards.
• The free space in between. New rows go here. The line pointers grow into it from the top, the tuples grow into it from the bottom.
• There’s also some special space at the very end. Tables don’t use it, but some indexes use it. This is beyond our scope for this post.

page-layout

Each tuple also has a small header of its own, with things like the transaction id that created it, followed by the actual column values.

Why do we need line pointers?

Why not just store the tuples one after another from the start of the page?

For a moment, assume that we don’t have line pointers and we placed the tuples one after the other from the start. Then row 3 in a page got deleted. Now there’s a hole in the middle of the page. To reuse that space, we would want to move the other rows to close the gap. But we can’t just move a row, because indexes may point to it. In order to move rows around, we may also need to move around indexes, which is not efficient.

With line pointers, we introduce indirection. Postgres can shuffle the tuples around inside the page to close the gaps, and it only has to update the offsets in the line pointers. The line pointer numbers themselves stay the same, so every index entry that points to row 3 still finds it. This is why these are also called slotted pages: each row has a fixed slot, and the slot knows where the row currently lives.

So, to summarise: a table is stored in segment files, a segment file is made of 8KB pages, and every page has a header, line pointers growing from the top, tuples growing from the bottom, and free space in the middle.

Now let’s go insert some data and find it on disk. The numbers in the outputs below ( OIDs, file names, the LSN and the transaction id ) will be slightly different on your machine, but the layout will be exactly the same.

Prerequisites

For this post, I’m assuming you know what docker containers are and how to build and run them.

I’m using the same postgres container as the previous post, with a few extra tools installed for looking at binary files ( like xxd ). The Dockerfile is on GitHub.

docker build -t postgres-17.6:v1 .

# To let the python app talk to postgres, we create a docker network
docker network create pgnet
docker run -d --name postgres --network pgnet -e POSTGRES_PASSWORD=secret postgres-17.6:v1

# Open a shell inside the container
docker exec -it postgres bash

I’ll keep two terminals open inside the container: one for psql and one for looking at the files.

Finding the data directory

Since postgres is running in this container, it must be storing its data in some directory. This location is usually in the PGDATA environment variable:

echo $PGDATA
# /var/lib/postgresql/data

If we list this directory, we see a bunch of files and subdirectories:

cd $PGDATA && ls -l

total 128
drwx------ 6 postgres postgres  4096 Mar 14 13:05 base
drwx------ 2 postgres postgres  4096 Mar 14 13:05 global
drwx------ 2 postgres postgres  4096 Mar 14 13:05 pg_commit_ts
drwx------ 2 postgres postgres  4096 Mar 14 13:05 pg_dynshmem
-rw------- 1 postgres postgres  5743 Mar 14 13:05 pg_hba.conf
-rw------- 1 postgres postgres  2640 Mar 14 13:05 pg_ident.conf
drwx------ 4 postgres postgres  4096 Mar 14 13:05 pg_logical
drwx------ 4 postgres postgres  4096 Mar 14 13:05 pg_multixact
drwx------ 2 postgres postgres  4096 Mar 14 13:05 pg_notify
drwx------ 2 postgres postgres  4096 Mar 14 13:05 pg_replslot
drwx------ 2 postgres postgres  4096 Mar 14 13:05 pg_serial
drwx------ 2 postgres postgres  4096 Mar 14 13:05 pg_snapshots
drwx------ 2 postgres postgres  4096 Mar 14 13:05 pg_stat
drwx------ 2 postgres postgres  4096 Mar 14 13:05 pg_stat_tmp
drwx------ 2 postgres postgres  4096 Mar 14 13:05 pg_subtrans
drwx------ 2 postgres postgres  4096 Mar 14 13:05 pg_tblspc
drwx------ 2 postgres postgres  4096 Mar 14 13:05 pg_twophase
-rw------- 1 postgres postgres     3 Mar 14 13:05 PG_VERSION
drwx------ 4 postgres postgres  4096 Mar 14 13:05 pg_wal
drwx------ 2 postgres postgres  4096 Mar 14 13:05 pg_xact
-rw------- 1 postgres postgres    88 Mar 14 13:05 postgresql.auto.conf
-rw------- 1 postgres postgres 30777 Mar 14 13:05 postgresql.conf
-rw------- 1 postgres postgres    36 Mar 14 13:05 postmaster.opts
-rw------- 1 postgres postgres    94 Mar 14 13:05 postmaster.pid

Some of these handle replication, some handle the write ahead log, some are config files. For now, we only care about base. This is where postgres stores the data for every database.

ls base/
# 1  16385  4  5

These numbers are object identifiers, or OIDs. Postgres gives an OID to almost everything it creates: databases, tables, indexes, roles and so on. Inside base/, there is one subdirectory per database, named after that database’s OID.

Let’s create a new database and watch a new directory show up. In the psql terminal ( psql -U postgres ):

CREATE DATABASE dummy;

SELECT oid, datname FROM pg_database;

We get this output:

  oid  |  datname
-------+------------
     5 | postgres
 16385 | mydatabase
     1 | template1
     4 | template0
 16386 | dummy

1, 4 and 5 are the default databases. 16385 is mydatabase, which our Dockerfile creates. And 16386 is the dummy database we just created. Your OIDs might be different.

ls base/
# 1  16385  16386  4  5

We can see the directory for our databae. If we look inside the new directory, we already see about 300 files, even though we haven’t created a single table yet:

ls base/16386 | wc -l
# 298

These are the system catalogs, which are postgres’s own internal tables. Every new database is a copy of the template1 database, so it starts with its own copy of all of the system catalogs.

---

Finding the table’s file

Now let’s create a table and insert a row. Switch to the dummy database with \c dummy and run:

CREATE TABLE users (
    id   serial PRIMARY KEY,
    name text,
    age  int
);

INSERT INTO users (name, age) VALUES ('Bob', 25);

To find the file for this table, postgres has a function:

SELECT pg_relation_filepath('users');

 pg_relation_filepath
----------------------
 base/16386/16388

So our row is somewhere inside base/16386/16388. This number is the table’s relfilenode. It often matches the table’s OID, but not always ( some commands like TRUNCATE can give the table a new file ), so it’s better to query postgres than to assume.

Let’s look at the file:

ls -l base/16386/16388
# -rw------- 1 postgres postgres 8192 ... base/16386/16388

It’s exactly 8192 bytes, which is one page. Now let’s dump the file bytes using xxd:

xxd -a base/16386/16388

00000000: 0000 0000 a8ac d401 0000 0000 1c00 d81f  ................
00000010: 0020 0420 0000 0000 d89f 4800 0000 0000  . . ......H.....
00000020: 0000 0000 0000 0000 0000 0000 0000 0000  ................
*
00001fd0: 0000 0000 0000 0000 de02 0000 0000 0000  ................
00001fe0: 0000 0000 0000 0000 0100 0300 0208 1800  ................
00001ff0: 0100 0000 0942 6f62 1900 0000 0000 0000  .....Bob........

This already matches the picture we had in mind. There are a few non-zero bytes at the start ( the page header and the line pointer ), a lot of empty space (zero bytes) in the middle ( the * means “the same line repeated” ), and a few non-zero bytes at the very end ( our tuple ). We can even see Bob sitting in the last line.

Now let’s decode these bytes properly.

---

Decoding the page header

The page header, line pointers and tuples are all just C structs. So if we read the structs in the postgres source code, we can interpret the bytes.

The page header is PageHeaderData in bufpage.h:

typedef struct PageHeaderData
{
    PageXLogRecPtr pd_lsn;
    uint16      pd_checksum;
    uint16      pd_flags;
    LocationIndex pd_lower;     /* offset to start of free space */
    LocationIndex pd_upper;     /* offset to end of free space */
    LocationIndex pd_special;   /* offset to start of special space */
    uint16      pd_pagesize_version;
    TransactionId pd_prune_xid;
    ItemIdData  pd_linp[FLEXIBLE_ARRAY_MEMBER]; /* line pointer array */
} PageHeaderData;

Everything except the line pointer array adds up to the first 24 bytes of the page. Let’s print just those:

xxd -l 24 base/16386/16388

00000000: 0000 0000 a8ac d401 0000 0000 1c00 d81f  ................
00000010: 0020 0420 0000 0000                      . . ....

One thing to know before reading these: the numbers are stored in little endian order. In a multi-byte number, the least significant byte comes first. So the two bytes 1c 00 are the 16 bit number 0x001c, and d8 1f is 0x1fd8. The bits inside each byte are not reversed, only the order of the bytes.

Bytes	Field	Raw	Value
0–7	pd_lsn	00000000 a8acd401	0/1D4ACA8, the WAL position of the last change to this page
8–9	pd_checksum	00 00	0, data checksums are off by default
10–11	pd_flags	00 00	0
12–13	pd_lower	1c 00	28, start of the free space
14–15	pd_upper	d8 1f	8152, end of the free space
16–17	pd_special	00 20	8192, the special space is empty
18–19	pd_pagesize_version	04 20	0x2004: page size 8192 + layout version 4
20–23	pd_prune_xid	00 00 00 00	0, nothing to prune yet

pd_lower and pd_upper tell the whole story of this page. The free space starts at byte 28, which is the 24 byte header plus one 4 byte line pointer. It ends at byte 8152, which is where our tuple starts. Everything in between, 8124 bytes, is free.

The LSN will be different on your machine. We’ll talk about LSNs when we look at the write ahead log.

---

Decoding the line pointer

Right after the header, at byte 24, comes the line pointer array. A line pointer is the ItemIdData struct in itemid.h:

typedef struct ItemIdData
{
    unsigned    lp_off:15,      /* offset to tuple (from start of page) */
                lp_flags:2,     /* state of line pointer, see below */
                lp_len:15;      /* byte length of tuple */
} ItemIdData;

It’s a single 32 bit number split into three bit fields: 15 bits for the offset of the tuple, 2 bits for flags, and 15 bits for the length of the tuple. We have one row, so we have one line pointer. Let’s read bytes 24 to 27 in binary:

xxd -s 24 -l 4 -b base/16386/16388

00000018: 11011000 10011111 01001000 00000000                    ..H.

This is where it gets slightly confusing. Because of little endian, we first have to put the four bytes back in the right order, which means reversing them:

00000000 01001000 10011111 11011000

Now we can read the fields from the right, since lp_off is the lowest field:

 lp_len (15 bits)   lp_flags (2)   lp_off (15 bits)
 000000000100100       01        001111111011000

• lp_off = 001111111011000 = 8152. The tuple starts at byte 8152.
• lp_flags = 01 = 1, which is LP_NORMAL. This is a normal, live row.
• lp_len = 000000000100100 = 36. The tuple is 36 bytes long.

So our row starts at byte 8152 and is 36 bytes long. That means it ends at byte 8188, and the last 4 bytes of the page are just padding.

---

Decoding the tuple

Now let’s read those 36 bytes:

xxd -s 8152 -l 36 base/16386/16388

00001fd8: de02 0000 0000 0000 0000 0000 0000 0000  ................
00001fe8: 0100 0300 0208 1800 0100 0000 0942 6f62  .............Bob
00001ff8: 1900 0000                                ....

Every tuple starts with a header, defined as HeapTupleHeaderData in htup_details.h. The fields add up to 23 bytes. Postgres then rounds that up to 24, so that the column data starts at an aligned offset.

Bytes	Field	Raw	Value
0–3	t_xmin	de 02 00 00	734, the transaction that inserted this row
4–7	t_xmax	00 00 00 00	0, no transaction has deleted it
8–11	t_cid	00 00 00 00	0, the first command in its transaction
12–17	t_ctid	0000 0000 0100	(0, 1): page 0, line pointer 1, the row points at itself
18–19	t_infomask2	03 00	3, the number of columns
20–21	t_infomask	02 08	0x0802: HEAP_HASVARWIDTH ( has a text column ) and HEAP_XMAX_INVALID
22	t_hoff	18	24, the column data starts 24 bytes into the tuple
23		00	padding

You can check t_xmin from psql: SELECT xmin, * FROM users; returns 734. Your number will be different.

The t_ctid field is the same ( page, line pointer ) pair that indexes use. Here we can see it in the bytes: 0000 0000 is block 0 and 0100 is line pointer 1.

After the header come the 12 bytes of actual data:

xxd -s 8176 -l 12 base/16386/16388

00001ff0: 0100 0000 0942 6f62 1900 0000            .....Bob....

Bytes	Column	Raw	Value
0–3	id ( int )	01 00 00 00	1
4	name length	09	a 1 byte length header
5–7	name ( text )	42 6f 62	“Bob”
8–11	age ( int )	19 00 00 00	25

The integers are easy: 4 bytes each, little endian. The text column is more interesting. Text has a variable length, so postgres needs to store the length too. For short values, it uses a single length byte: the total length shifted left by one, with the lowest bit set to 1 to mark it as a short header ( see SET_VARSIZE_1B in varatt.h ). “Bob” is 3 bytes, plus 1 for the header, is 4. (4 << 1) | 1 = 9, which is the 09 we see.

And that’s our row: (1, 'Bob', 25), found on disk, byte by byte.

---

The easy way: pageinspect

Decoding bytes by hand is tedious, and nobody really needs to do it. But I think it’s awesome to do it once. But postgres comes with an extension called pageinspect that does all of this for us:

CREATE EXTENSION pageinspect;

SELECT lower, upper, special, pagesize, version
FROM page_header(get_raw_page('users', 0));

 lower | upper | special | pagesize | version
-------+-------+---------+----------+---------
    28 |  8152 |    8192 |     8192 |       4

SELECT lp, lp_off, lp_flags, lp_len, t_xmin, t_ctid, t_hoff, t_data
FROM heap_page_items(get_raw_page('users', 0));

 lp | lp_off | lp_flags | lp_len | t_xmin | t_ctid | t_hoff |           t_data
----+--------+----------+--------+--------+--------+--------+----------------------------
  1 |   8152 |        1 |     36 |    734 | (0,1)  |     24 | \x0100000009426f6219000000

Every number matches what we decoded by hand. There is also pg_filedump, a command line tool that can read the files directly, without a running server.

---

Summary

Postgres stores the data of a table in segment files of up to 1GB. Each segment file is made of 8KB pages, and the page is the unit of IO in postgres. Each page has a 24 byte header, an array of line pointers growing from the top, the tuples growing from the bottom, and free space in between.

When we insert a row, postgres looks for a page with enough free space. If there isn’t one, it adds a new page to the end of the table’s file. Once the file reaches 1GB, a new segment file is started and the process repeats.

---

What I left out

A few things that didn’t fit in this post:

• Forks. Right now our table has a single file. Over time, postgres also creates 16388_fsm ( the free space map, which helps postgres find a page with enough room for a new row ) and 16388_vm ( the visibility map, which helps VACUUM skip pages and makes index-only scans possible ). These usually show up after the first VACUUM. The free space map gets its own post next.
• TOAST. Large values, like a long text column, don’t fit in an 8KB page. Postgres compresses them and/or moves them to a separate TOAST table, and the row only keeps a pointer.
• NULLs. If a row has NULL values, the tuple header gets an extra bitmap marking which columns are NULL, and t_hoff grows to make room for it.
• Alignment. Columns are aligned based on their type. An int must start at a multiple of 4 bytes, for example. In our row that worked out with no padding, but column order can waste space in other tables.
• Updates. An UPDATE in postgres doesn’t change the row in place. It writes a new version of the row and sets t_xmax and t_ctid on the old one. That’s a topic for another post.

---
